ADX System Example - Golf Announce Facilities

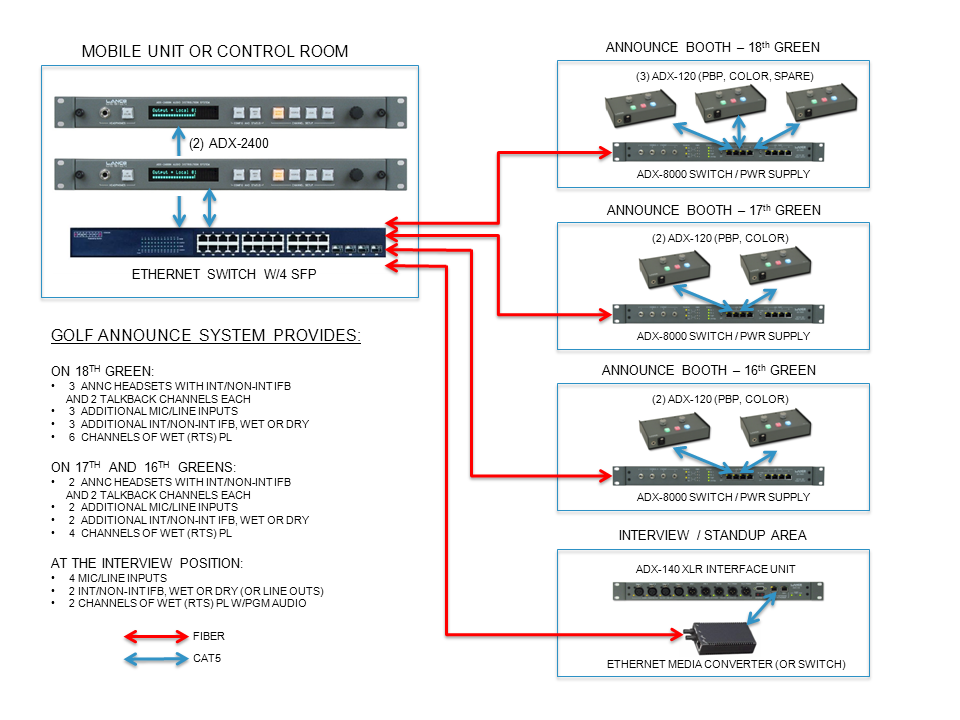

This compact system provides annouce positions for three holes of golf coverage, with an additional interview room position. It may of course be expanded as desired if more facilities are required. An Ethernet switch with four SFP ports is used at the mobile unit to provide fiber connections to four locations. An ADX-8000 could also be used for this purpose.
Note that redundant fibers are possible with all the examples shown, but not included in the drawings for the sake of clarity.
